DAISO | G-Tape creasing matrix

Stripping accessories

Stripping female tools

Unit = mm

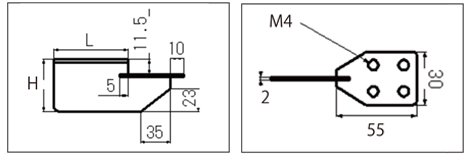

M-1

M-1

Features

  • For female stripping board. Stripping blade area and machine side-bar striping area.

Specification

m-1

NameHeight (H)Length (L)
M-1 25x502550
M-1 25x15025150
M-1 25x30025300
M-1 32x503250
M-1 32x15032150
M-1 32x30032300
M-1 35x503550
M-1 35x15035150
M-1 35x30035300
M-1 50x505050
M-1 50x15050150
M-1 50x30050300

Base

ハネ

Features

  • Base area for M-1.

Specification

m-1hane

Namesize
Base30x55

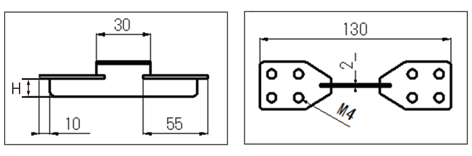

M-2

M-2

Features

  • For female stripping board. Stripping area in slot (up to 20mm).

Specification

M-2_zumen00

NameHeight (H)Length (L)
M-2 (10)1030
M-2 (25)2530
M-2 (32)3230
