DAISO | G-Tape creasing matrix

Rubber

Cork rubber

Unit = mm / Hardness = ASKER C/SRIS 0101

NEO CORK

ネオコルク

Feature

  • NEO-CORK can enhance nicks and support high-speed production.
  • NEO-CORK can eliminate sheet delamination
  • ※Not available in Europe.

Specification

ネオコルク

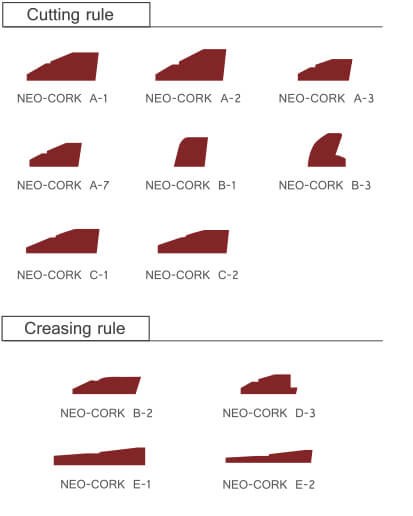

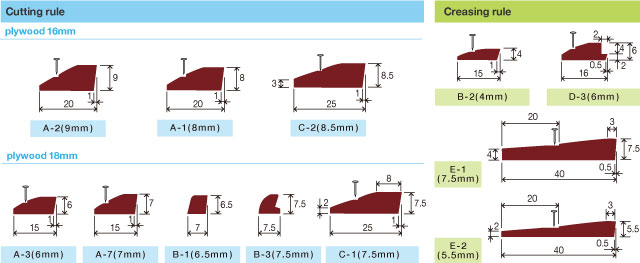

NameSize(Height x width x length)HardnessPosition
NEO-CORK A-29 x 20 x 90075°Plywood 16mm/Cutting rule
NEO-CORK A-18 x 20 x 90075°Plywood 16mm/Cutting rule
★NEO-CORK C-28.5 x 25 x 90075°Plywood 16mm/Cutting rule
NEO-CORK A-36 x 15 x 90075°Plywood 18mm/Cutting rule
★NEO-CORK A-77 x 15 x 90075°Plywood 18mm/Cutting rule
NEO-CORK B-16.5 x 7 x 90075°Plywood 18mm/Cutting rule
NEO-CORK B-37.5 x 7.5 x 90085°Plywood 18mm/Cutting rule
★NEO-CORK C-17.5 x 25 x 90075°Plywood 18mm/Cutting rule
★NEO-CORK B-24 x 15 x 90075°Creasing rule
NEO-CORK D-36 x 16 x 90075°Creasing rule
★NEO-CORK E-17.5 x 40 x 90075°Creasing rule
★NEO-CORK E-25.5 x 40 x 90075°Creasing rule

※Cyanon glue is recommended to fix NEO-CORK.

★=Produced on order
