W ・WL type (Off-center, 2-4pt creasing rule)

Unit = mm

Features

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
Width :10mm
Length :700mm

Size

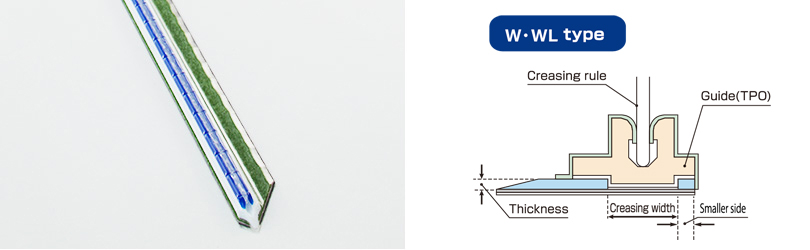

NameThicknessCreasing widthSmaller sideCreasing rule
W-04100.41.01.32-3pt 0.7-1.0mm
W-04130.41.31.32-3pt 0.7-1.0mm
W-04150.41.51.62-3pt 0.7-1.0mm
W-04170.41.71.62-3pt 0.7-1.0mm
W-05150.51.51.62-3pt 0.7-1.0mm
W-05170.51.71.62-3pt 0.7-1.0mm
W-05190.51.91.62-3pt 0.7-1.0mm
W-05210.52.11.32-3pt 0.7-1.0mm
W-05230.52.30.92-3pt 0.7-1.0mm
W-06150.61.50.92-3pt 0.7-1.0mm
W-06170.61.70.92-3pt 0.7-1.0mm
W-06190.61.90.92-3pt 0.7-1.0mm
W-06210.62.10.92-3pt 0.7-1.0mm
W-06240.62.40.92-3pt 0.7-1.0mm
W-08240.82.40.92-3pt 0.7-1.0mm
W-08270.82.70.92-3pt 0.7-1.0mm
W-08300.83.00.92-3pt 0.7-1.0mm
WL-06220.62.20.94pt 1.4mm
WL-06240.62.40.94pt 1.4mm
WL-06270.62.70.94pt 1.4mm
WL-06300.63.00.94pt 1.4mm
WL-08240.82.40.94pt 1.4mm
WL-08270.82.70.94pt 1.4mm
WL-08300.83.00.94pt 1.4mm
