- G-Tape
- M type (2-3pt creasing rule, 8mm width)

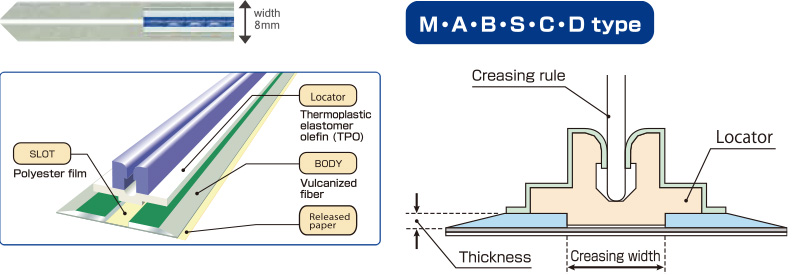

M type (2-3pt creasing rule, 8mm width)
Unit = mm
Features
The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
Width | 8mm |
---|---|
Creasing rule | 2-3pt 0.7-1.0mm |
Length | 700mm |
Size
Name | Thickness | Creasing width | Creasing rule | Length |
---|---|---|---|---|
M-0408 | 0.4 | 0.8 | 2-3pt 0.7-1.0mm | 700mm |
M-0410 | 0.4 | 1.0 | 2-3pt 0.7-1.0mm | 700mm |
M-0411 | 0.4 | 1.1 | 2-3pt 0.7-1.0mm | 700mm |
M-0412 | 0.4 | 1.2 | 2-3pt 0.7-1.0mm | 700mm |
M-0413 | 0.4 | 1.3 | 2-3pt 0.7-1.0mm | 700mm |
M-0414 | 0.4 | 1.4 | 2-3pt 0.7-1.0mm | 700mm |
M-0415 | 0.4 | 1.5 | 2-3pt 0.7-1.0mm | 700mm |
M-0416 | 0.4 | 1.6 | 2-3pt 0.7-1.0mm | 700mm |
M-0417 | 0.4 | 1.7 | 2-3pt 0.7-1.0mm | 700mm |
M-0419 | 0.4 | 1.9 | 2-3pt 0.7-1.0mm | 700mm |
M-0513 | 0.5 | 1.3 | 2-3pt 0.7-1.0mm | 700mm |
M-0514 | 0.5 | 1.4 | 2-3pt 0.7-1.0mm | 700mm |
M-0515 | 0.5 | 1.5 | 2-3pt 0.7-1.0mm | 700mm |
M-0516 | 0.5 | 1.6 | 2-3pt 0.7-1.0mm | 700mm |
M-0517 | 0.5 | 1.7 | 2-3pt 0.7-1.0mm | 700mm |
M-0518 | 0.5 | 1.8 | 2-3pt 0.7-1.0mm | 700mm |
M-0519 | 0.5 | 1.9 | 2-3pt 0.7-1.0mm | 700mm |
M-0520 | 0.5 | 2.0 | 2-3pt 0.7-1.0mm | 700mm |
