- G-Tape

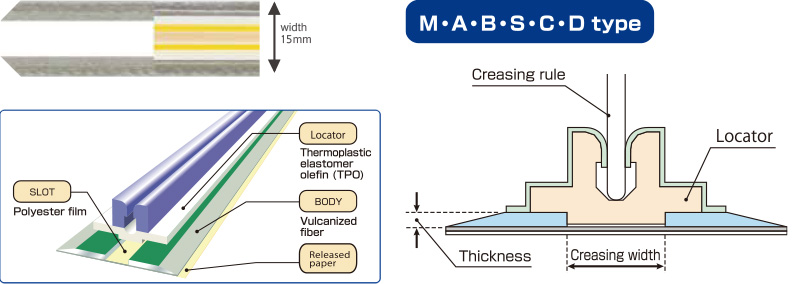

- D type (8pt creasing rule, width 15mm)
D type (8pt creasing rule, width 15mm)
Unit = mm
Features
The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
Width | :15mm |
---|---|
Creasing rule | :8 pt 3.0mm |
Length | :700mm |
Size
Name | Thickness | Creasing width |
---|---|---|
D-0850 | 0.8 | 5.0 |
D-0860 | 0.8 | 6.0 |
D-0870 | 0.8 | 7.0 |
D-1050 | 1.0 | 5.0 |
D-1055 | 1.0 | 5.5 |
D-1060 | 1.0 | 6.0 |
D-1070 | 1.0 | 7.0 |
