C type (6pt creasing rule, width 15mm)
Unit = mm

Features

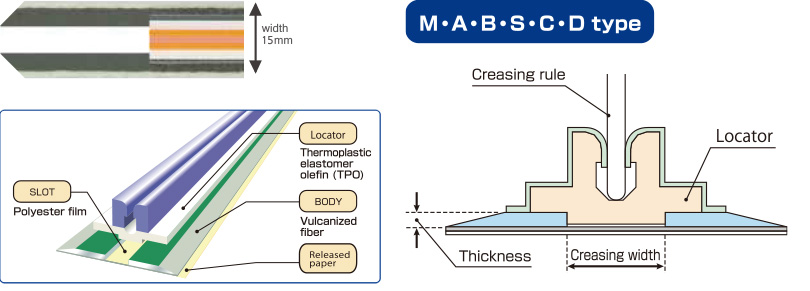

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
| Width | :15mm |
|---|---|
| Creasing rule | :6pt 2.0mm |
| Length | :700mm |
Size
| Name | Thickness | Creasing width |
|---|---|---|
| C-0640 | 0.6 | 4.0 |
| C-0832 | 0.8 | 3.2 |
| C-0835 | 0.8 | 3.5 |
| C-0840 | 0.8 | 4.0 |
| C-0845 | 0.8 | 4.5 |
| C-0850 | 0.8 | 5.0 |
| C-0860 | 0.8 | 6.0 |
| C-1040 | 1.0 | 4.0 |
| C-1045 | 1.0 | 4.5 |
| C-1050 | 1.0 | 5.0 |
| C-1060 | 1.0 | 6.0 |
