G-Tape (creasing matrix)

BW type (Double crease)

Unit = mm / Hardness = ASKER C/SRIS 0101

Features

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
Width 15mm
(creasing width up to 7.5mm)
Width 20mm
(creasing width over 8.0mm)
Length :700mm

Size

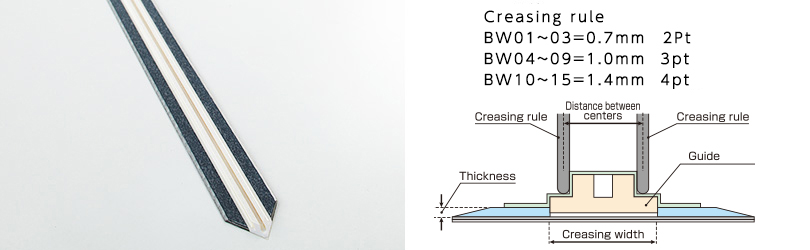

NameThicknessCreasing widthDistance between centersCreasing rule
BW 010.54.53.02pt 0.7mm
BW 020.55.54.02pt 0.7mm
BW 030.56.55.02pt 0.7mm
BW 040.65.53.03pt 1.0mm
BW 050.66.54.03pt 1.0mm
BW 060.67.55.03pt 1.0mm
BW 070.68.56.03pt 1.0mm
BW 080.69.57.03pt 1.0mm
BW 090.610.58.03pt 1.0mm
BW 100.66.03.04pt 1.4mm
BW 110.67.04.04pt 1.4mm
BW 120.68.05.04pt 1.4mm
BW 130.69.06.04pt 1.4mm
BW 140.610.07.04pt 1.4mm
BW 150.611.08.04pt 1.4mm
