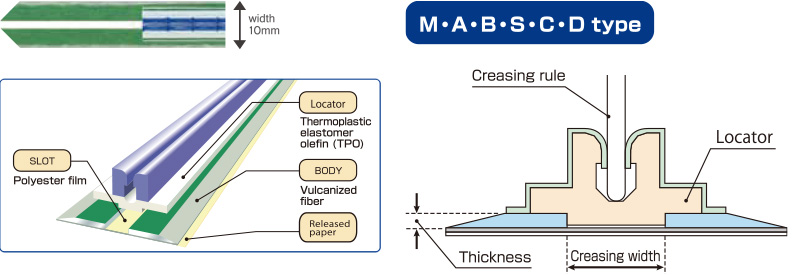

A type (2-3pt 0.7-1.0mm creasing rule, width 10mm)
Unit = mm
Features
The best creasing matrix to prevent creasing cracks in diecutting process.
Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers.
One touch setting makes it much easier even to set double-creasing types.
G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use.
G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
Width | 10mm |
---|---|
Creasing rule | 2-3pt 0.7-1.0mm |
Length | 700mm |
Size
Name | Thickness | Creasing width |
---|---|---|
A-0308 | 0.3 | 0.8 |
A-0408 | 0.4 | 0.8 |
A-0410 | 0.4 | 1.0 |
A-0411 | 0.4 | 1.1 |
A-0412 | 0.4 | 1.2 |
A-0413 | 0.4 | 1.3 |
A-0414 | 0.4 | 1.4 |
A-0415 | 0.4 | 1.5 |
A-0416 | 0.4 | 1.6 |
A-0417 | 0.4 | 1.7 |
A-0419 | 0.4 | 1.9 |
A-0513 | 0.5 | 1.3 |
A-0514 | 0.5 | 1.4 |
A-0515 | 0.5 | 1.5 |
A-0516 | 0.5 | 1.6 |
A-0517 | 0.5 | 1.7 |
A-0518 | 0.5 | 1.8 |
A-0519 | 0.5 | 1.9 |
A-0520 | 0.5 | 2.0 |
A-0521 | 0.5 | 2.1 |
A-0522 | 0.5 | 2.2 |
A-0524 | 0.5 | 2.4 |
A-0617 | 0.6 | 1.7 |
A-0619 | 0.6 | 1.9 |
A-0620 | 0.6 | 2.0 |
A-0621 | 0.6 | 2.1 |
A-0622 | 0.6 | 2.2 |
A-0623 | 0.6 | 2.3 |
A-0624 | 0.6 | 2.4 |
A-0625 | 0.6 | 2.5 |
A-0627 | 0.6 | 2.7 |
A-0630 | 0.6 | 3.0 |
A-0715★ | 0.7 | 1.5 |
A-0717★ | 0.7 | 1.7 |
A-0719★ | 0.7 | 1.9 |
A-0720★ | 0.7 | 2.0 |
A-0721★ | 0.7 | 2.1 |
A-0722★ | 0.7 | 2.2 |
A-0825 | 0.8 | 2.5 |
A-0827 | 0.8 | 2.7 |
A-0830 | 0.8 | 3.0 |
