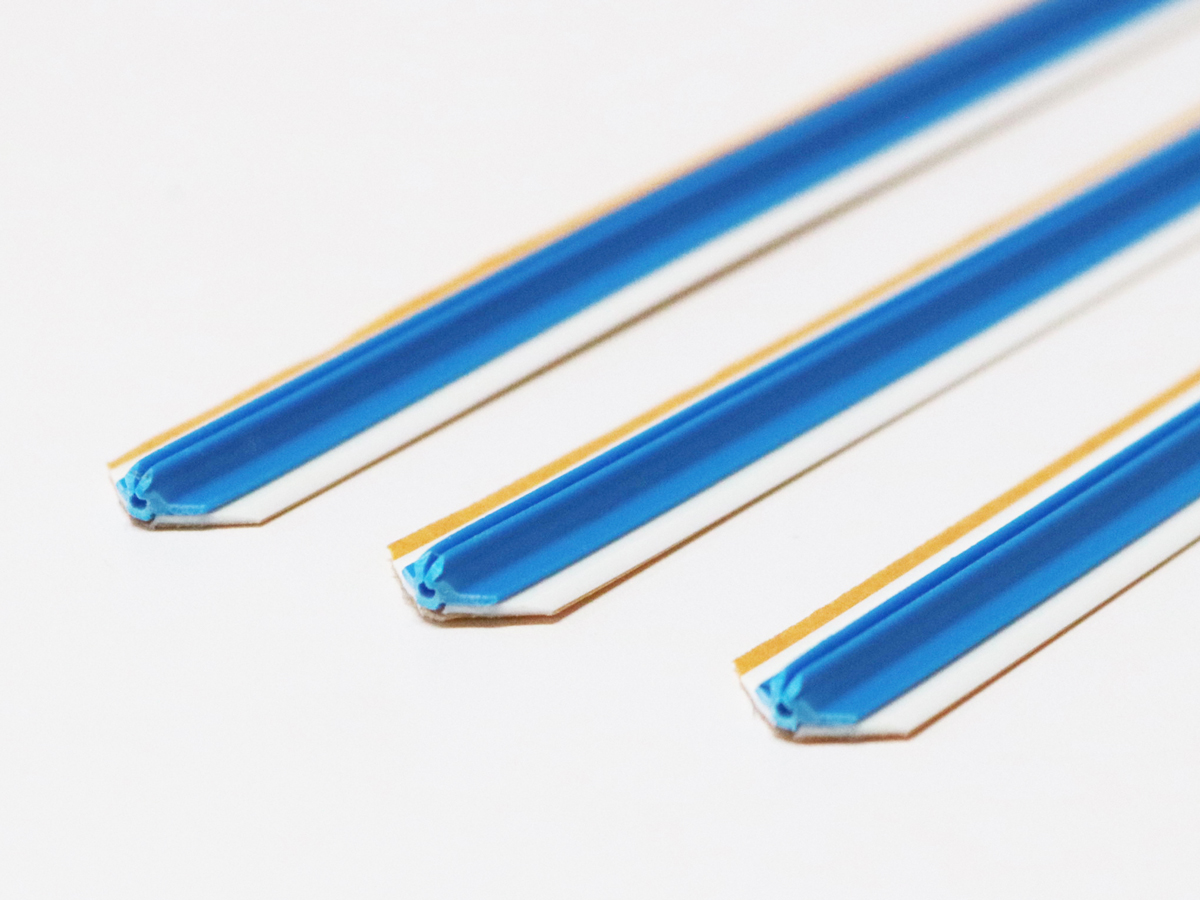

ECO-matrix (Creasing matrix)

ECO-matrix (Creasing matrix)



Unit = mm

ECO-matrix

Features

  • Entry model into DAISO creasing matrix with reasonable cost.
  • Suitable for small and medium runs job.
ECO-matrix

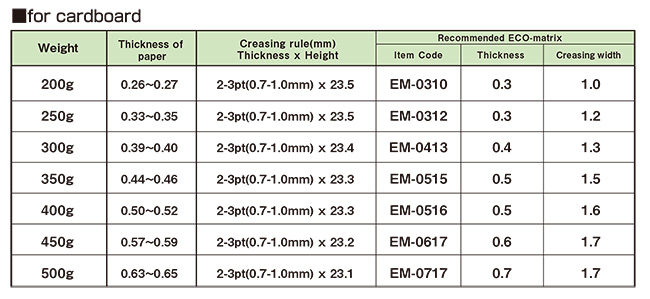

Specification

NameThicknessCreasing width
EM-03100.31.0
EM-03120.31.2
EM-04130.41.3
EM-05150.51.5
EM-05160.51.6
EM-06170.61.7
EM-07170.71.7
