G-Tape

  • G-Tape
  • S type (2-3pt creasing rule, width 15mm)

S type (2-3pt creasing rule, width 15mm)

Unit = mm / Hardness = ASKER C/SRIS 0101

Features

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.

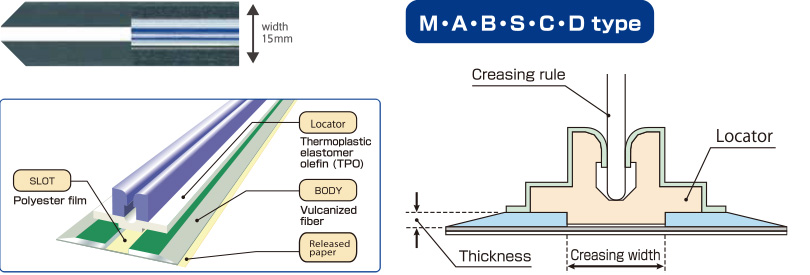

Width 15mm
Creasing rule 2-3pt
0.7-1.0mm
Length 700mm

Size

NameThicknessCreasing width
S-06200.62.0
S-06210.62.1
S-06220.62.2
S-06230.62.3
S-06240.62.4
S-06250.62.5
S-06270.62.7
S-06300.63.0
S-07150.71.5
S-07170.71.7
S-07190.71.9
S-07200.72.0
S-07210.72.1
S-07220.72.2
S-08250.82.5
S-08270.82.7
S-08300.83.0
S-08320.83.2
S-08350.83.5
S-08400.84.0
S-08500.85.0
S-10301.03.0
S-10321.03.2
S-10351.03.5
S-10401.04.0
S-10501.05.0
