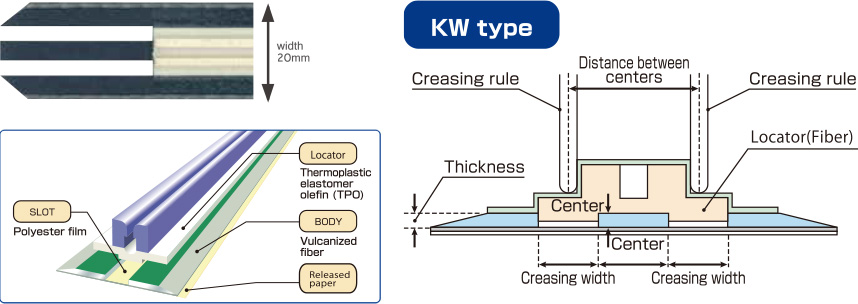

KW type (Double crease)
Unit = mm / Hardness = ASKER C/SRIS 0101
Features
The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
Width | :20mm |
---|---|
Creasing rule | :1.4 |
Length | :700mm |
KW-01/02/03 B/F (against grain direction) KW-04/05/06 B/F (along grain direction) |
Size
Name | Thickness | Creasing width | Distance between centers | Creasing rule | Center |
---|---|---|---|---|---|
KW-01 | 0.6 | 3.0 | 6.0 | 4pt 1.4mm | 0.6x3.0 |
KW-02 | 0.6 | 3.0 | 7.0 | 4pt 1.4mm | 0.6x4.0 |
KW-03 | 0.6 | 3.0 | 8.0 | 4pt 1.4mm | 0.6x5.0 |
KW-04 | 0.8 | 3.2 | 6.0 | 4pt 1.4mm | 0.4x3.0 |
KW-05 | 0.8 | 3.2 | 7.0 | 4pt 1.4mm | 0.4x4.0 |
KW-06 | 0.8 | 3.2 | 8.0 | 4pt 1.4mm | 0.4x5.0 |
