- G-Tape

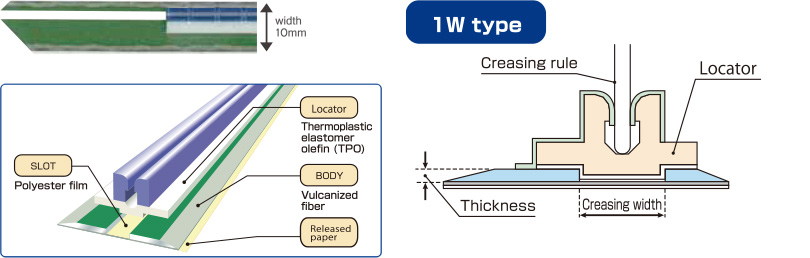

- 1W type (Off-center with side taper, 2-3pt creasing rule )
1W type (Off-center with side taper, 2-3pt creasing rule )
Unit = mm
Features
The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change.
Width | :10mm |
---|---|
Length | :700mm |
Size
Name | Thickness | Creasing width |
---|---|---|
1W-0414 | 0.4 | 1.4 |
1W-0515 | 0.5 | 1.5 |
1W-0517 | 0.5 | 1.7 |
